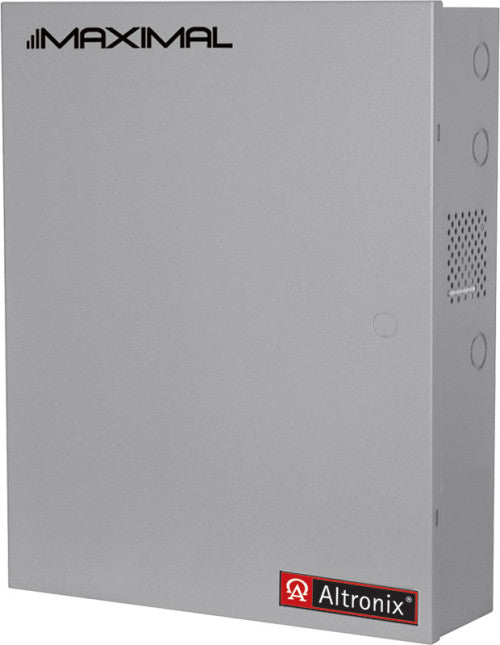

Altronix MAXIMAL77EV 24VDC@20A 2 OUT, 220VAC IN

MAXIMAL77EV 24VDC@20A 2 OUT, 220VAC IN Maximal77EV provides system designers and installers with maximum power choices and the highest levels of versatility. It provides 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications. Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 6.25A input. Output 24VDC outputs. Maximum output current Options: A) 24VDC @ 10A plus 24VDC @ 10A. Filtered and electronically regulated outputs (built-in power supply). Thermal and short circuit protection with auto reset. Fuse Ratings Power Supply input fuse rated @ 10A/250V. Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery and battery presence supervision (form "C" contact). Battery Charging Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 246 BTU/Hr. System AC input VA requirement: 1375VA.
