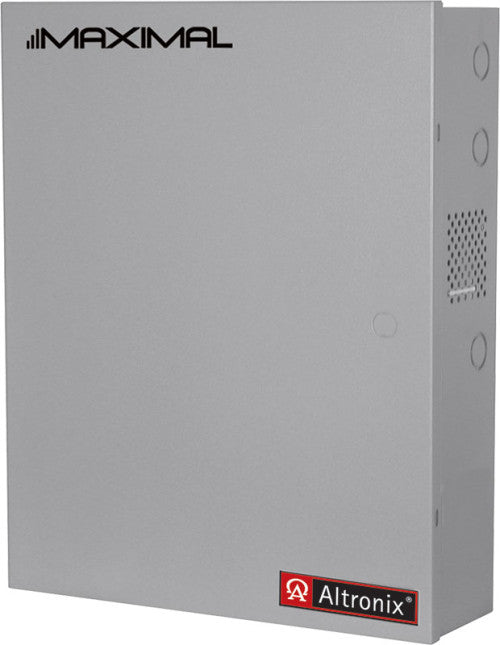

Altronix MAXIMAL75E 12VDC@10A/24VDC@10A 2 OUT

Altronix MAXIMAL75E 12VDC@10A/24VDC@10A 2 OUT Maximal75E provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC and 24VDC via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications. Input 115VAC 60Hz, 7.0A input. Output 12VDC and 24VDC output. Maximum output current Options: A) 24VDC @ 10A plus 12VDC @ 10A. Filtered and electronically regulated outputs (built-in power supply). Thermal and short circuit protection with auto reset. Fuse Ratings Power Supply input fuse ratings: AL1012ULXB: 3.5A/250V AL1024ULXB: 10A/250V Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery and battery presence supervision (form "C" contact). Battery Charging Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Electrical Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 184 BTU/Hr. System AC input VA requirement: 805VA.
