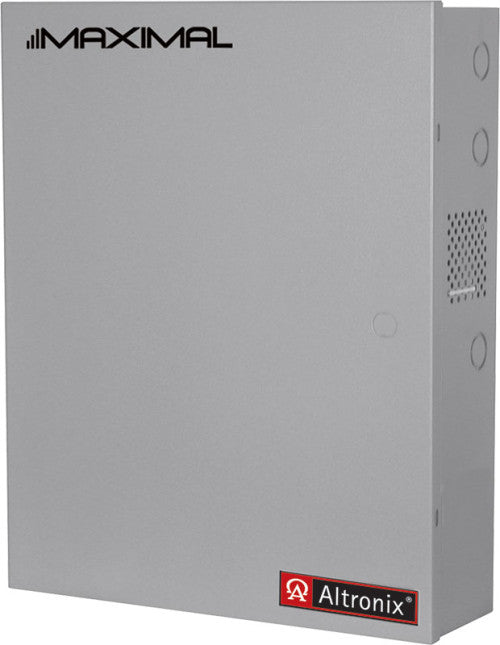

Altronix MAXIMAL55E 12VDC@20A, 2 OUT

Altronix MAXIMAL55E 12VDC@20A, 2 OUT This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control applications. Input 115VAC 60Hz, 5.2A input. Output 12VDC outputs. Maximum output current Options: A) 12VDC @ 10A plus 12VDC @ 10A. Filtered and electronically regulated outputs (built-in power supply). Thermal and short circuit protection with auto reset. Fuse Ratings Power Supply input fuse rated @ 3.5A/250V. Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery and battery presence supervision (form "C" contact). Battery Charging Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC & 123 BTU/Hr. System AC input VA requirement: 598VA.
