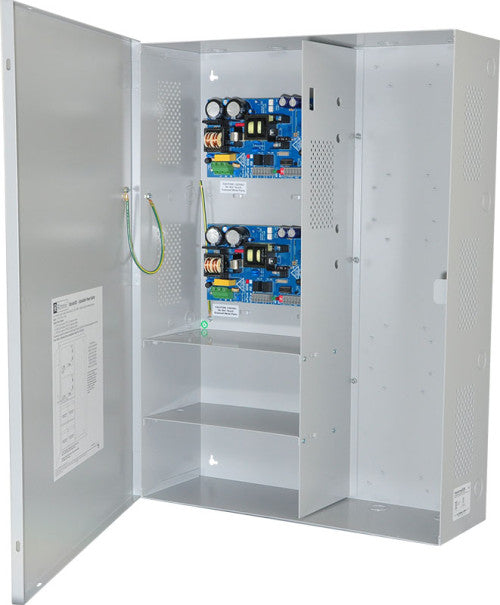

Altronix MAXIMAL33FEV 2-EFLOW6NBV POWER SUPPLY 220V

MAXIMAL33FEV 2-EFLOW6NBV POWER SUPPLY 220V Maximal33FEV Expandable Power System provides system designers and installers with optimum power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/ chargers. System includes AC fail, low battery and battery presence monitoring. Enclosure facilitates up to four (4) 12VDC/12AH batteries. All interconnecting equipment must be UL Listed. Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 4.2A input. Output 12VDC and/or 24VDC outputs. Maximum output current Options: A) 12VDC @ 6A plus 12VDC @ 6A. B) 12VDC @ 6A plus 24VDC @ 6A. C) 24VDC @ 6A plus 24VDC @ 6A. Aux. output rated @ 1A (unswitched). Overvoltage protection. Fuse Ratings Power Supply input fuse rated @ 5A/250V. Fire Alarm Disconnect Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger. Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 2 hours. Battery fail & presence supervision (form "C" contacts). Low power shutdown. Prevents deep battery discharge. Battery Charging Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Visual Indicators Green AC Power LED indicates 220VAC present. AC input and DC output LED indicators. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70ºC ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC @ 6A & 12VDC @ 6A : 74 BTU/Hr. 12VDC @ 6A & 24VDC @ 6A : 111 BTU/Hr. 24VDC @ 6A & 24VDC @ 6A : 147 BTU/Hr. System AC input VA requirement: 924VA.
