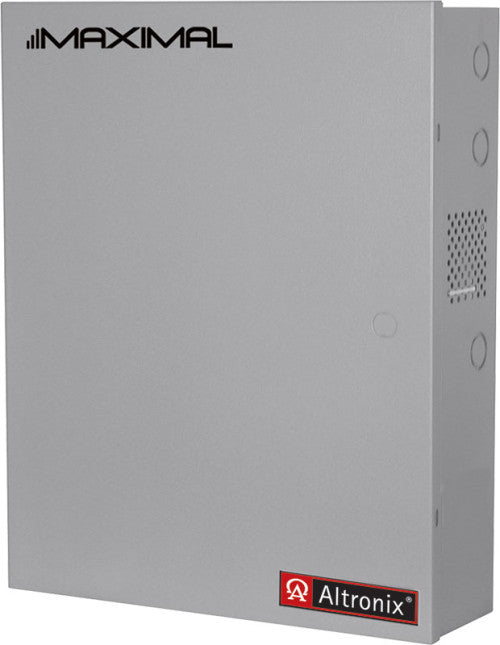

Altronix MAXIMAL11E 12VDC@8A/24VDC@6A, 2 OUT

Altronix MAXIMAL11E 12VDC@8A/24VDC@6A, 2 OUT Maximal11E provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable UL Listed sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications. Input 115VAC 60Hz, 7.0A input. Output 12VDC and/or 24VDC outputs. Maximum output current Options: A) 12VDC @ 4A plus 12VDC @ 4A. B) 24VDC @ 3A plus 24VDC @ 3A. C) 12VDC @ 4A plus 24VDC @ 3A. Class 2 Rated power limited outputs. Filtered and electronically regulated outputs (built-in power supply). Thermal and short circuit protection with auto reset. Fuse Ratings Power Supply input fuse rated @ 3.5A/250V. Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery and battery presence supervision (form "C" contact). Battery Charging Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 43 BTU/Hr. 24VDC: 66 BTU/Hr. 12VDC & 24VDC: 55 BTU/Hr. System AC input VA requirement: 805VA.
