Altronix LPS3AC 12/24 2.5A W/PWR FAIL

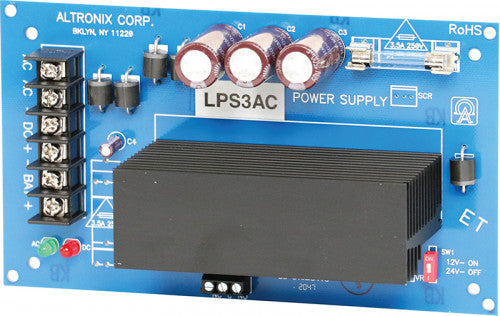

Altronix LPS3AC 12/24 2.5A W/PWR FAIL Altronix LPS3AC linear power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. The unit is specifically designed to provide the power needed by the most demanding security and access control applications. Input 16VAC or 28VAC. Output 12VDC/24VDC selectable output. 2.5A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current: 500mA. Automatic switch over to stand-by battery. Fused battery protection (circuit breaker available). Includes battery leads. (Batteries are sold separately). Supervision Provides AC Fail supervision (Form "C" contacts).. Visual Indicators AC/DC power LED indicator. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 15 BTU/Hr. 24VDC: 31 BTU/Hr.
