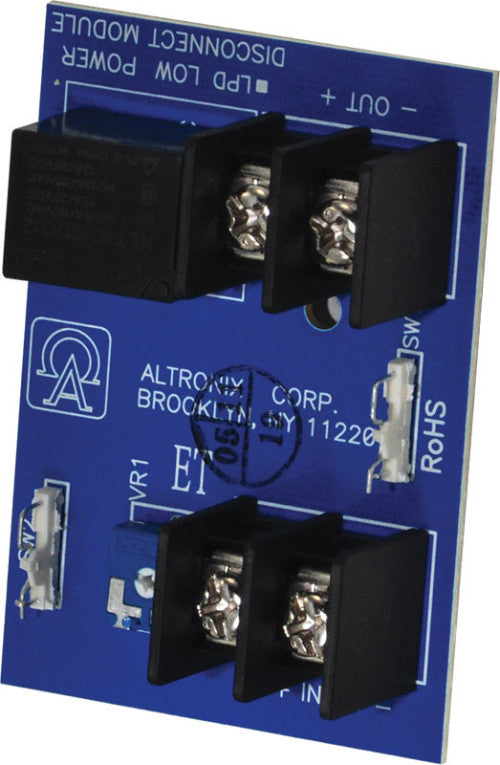

Altronix LPD LOW POWER DISCONNECT MODULE
LPD is a convenient way to add a low battery or low power disconnect feature to any power supply rated up to 8A Threshold is adjustable for added flexibility.
Input
Input voltage: 12VDC or 24VDC max., 8A.
Operating Voltages
Low voltage cutoff:
12VDC: 10.5 volts ( +/- 0.3 volts)
24VDC: 20 volts ( +/- 0.3 volts).
Restore voltage threshold:
12VDC: 11.5 volts ( +/- 0.3 volts)
24VDC: 23 volts ( +/- 0.3 volts).
Relay
Relay contact rating 8A max.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
