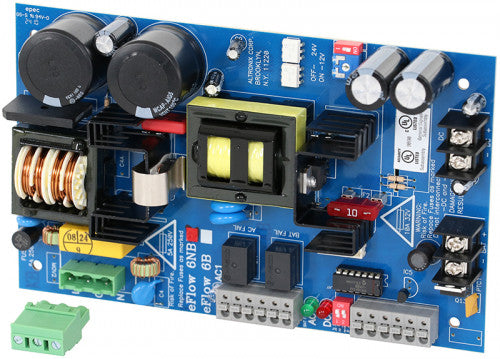

Altronix EFLOW6NB 12VDC or 24VDC @ 6 amp BOARD

Altronix EFLOW6NB 12VDC or 24VDC @ 6 amp BOARD Altronix eFlow6NB UL Listed Sub-Assembly power supply/charger converts a 120VAC, 60Hz input into a single 12VDC or 24VDC output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Input Voltage: Input 120VAC 60Hz, 3.5A. Input Fuse: 5A/250V Removable AC input terminal block to facilitate installation and wiring. Outputs Voltage: 12VDC or 24VDC selectable output. Current: 6A continuous supply current. Auxiliary: Power-limited @ 1A (unswitched). Other: Overvoltage protection. Filtered and electronically regulated outputs. Battery Charging Type: Sealed lead acid or gel type. Battery Fuse: 10A/32V. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form "C" contacts. Battery: AC Failure Form "C" contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply) Prevents deep battery discharge Indicators (LED) Input: 120VAC is present. DC Output: Powered. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 37 BTU/Hr. 24VDC: 74 BTU/Hr.
