Altronix EFLOW104NX8V 24DC@10A/8FUSE/FAI/220/BC400

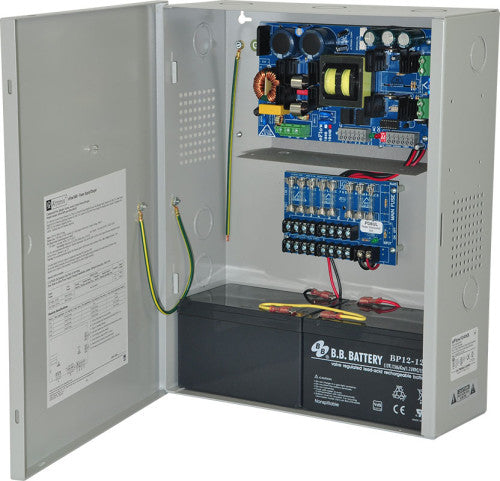

EFLOW104NX8V 24DC@10A/8FUSE/FAI/220/BC400 Altronix eFlow104NX8V is a power supply/charger that converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into eight (8) fuse protected 24VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.7A. Input fuse: 5A/250V. Output Eight (8) fuse protected outputs. Outputs are rated @ 2.5A. 24VDC @ 10A supply current. Auxiliary output rated @ 1A (unswitched). Overvoltage protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current: 1.54A. Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 2 hours. Battery fail and presence supervision (form "C" contacts). Low power shutdown. Shuts down DC output terminals if battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge. Fire Alarm Disconnect Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 123 BTU/Hr. System AC input VA requirement: 594VA. Visual Indicators Green AC Power LED indicates 220VAC present. AC input and DC output LED indicators. Additional Features Short circuit and overload protection. Unit is complete with power supply, enclosure, battery leads, and cam lock.
