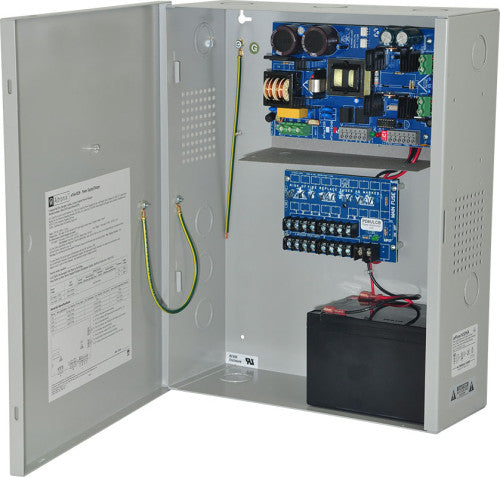

Altronix EFLOW102NX8D 12VDC @ 10A, 8 PTC, FAI XL

Altronix EFLOW102NX8D 12VDC @ 10A, 8 PTC, FAI XL Altronix eFlow102NX8D is a power supply/charger that converts a 120VAC 60Hz input into eight (8) Class 2 power-limited PTC protected 12VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Input 120VAC, 60Hz, 3.5A. Input fuse: 5A/250V. Output Eight (8) Class 2 power-limited PTC protected outputs (auto-resettable). Outputs are rated @ 2A. 12VDC @ 10.0A supply current. Auxiliary Class 2 Power-Limited output rated @ 1A (unswitched). Overvoltage Protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current: 1.54A. Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 2 hours. Battery fail & presence supervision (form "C" contacts). Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% (depending on the power supply). Prevents deep battery discharge. Fire Alarm Disconnect Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/Hr. System AC input VA requirement: 420VA. Visual Indicators Green AC Power LED indicates 120VAC present. AC input and DC output LED indicators. Additional Features Short circuit and overload protection. Unit is complete with power supply, enclosure, battery leads and cam lock.
