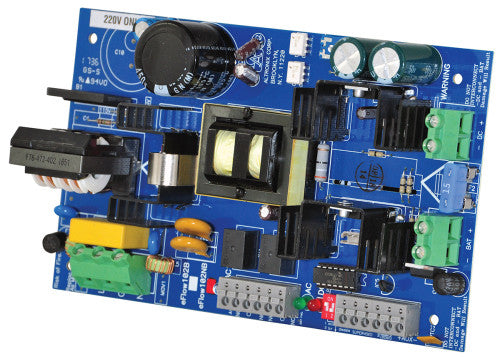

Altronix EFLOW102NBV 12VDC @ 10 amp BOARD 220V

EFLOW102NBV 12VDC @ 10 amp BOARD 220V Altronix eFlow102NBV is a power supply/charger converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single 12VDC output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Input Rating Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A. Output 12VDC output. 10A continuous supply current. Aux. output rated @ 1A (unswitched). Overvoltage protection. Filtered and electronically regulated outputs. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Transfer to stand-by battery power is instantaneous with no interruption. (Batteries are sold separately). Fire Alarm Disconnect Supervised Fire Alarm disconnect (latching or nonlatching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger. Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 2 hours. Battery fail and presence supervision (form "C" contacts). Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of nominal. Prevents deep battery discharge. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/Hr. System AC input VA requirement: 462VA. Visual Indicators Green AC Power LED indicates 220VAC present. AC input and DC output LED indicators. Additional Features Short circuit and overload protection.
