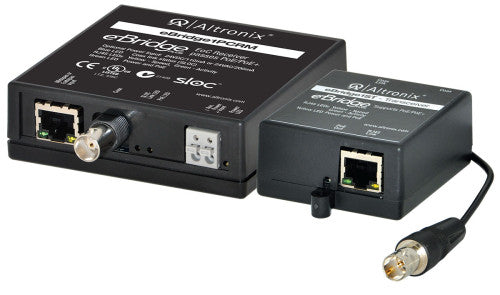

Altronix eBridge1STR ethernet over coax adapter kit transmits data at 25Mbps and power over Coax cable in a PoE+ compliant format. The eBridge1PCRM is powered by an external midspan or endspan. The eBridge1PCRM receiver passes PoE/PoE+ power over the same coax cable to the eBridge1ST transceiver, which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate a cost-effective, simple way to replace legacy analog products with new IP devices over existing coax up to 500m.

Input (eBridge1PCRM)
Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5.
Distance: up to 500m.
Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by eBridge1ST. Power provided by eBridge1PCRM to eBridge1ST by PoE protocol.

Coax Link
Distance: Coax 500m for power delivery.
Throughput is rated to pass 25Mbps of data at distances up to 500m.
Connectivity: BNC, RG-59/U or similar.

LED Indicators
eBridge1PCRM and eBridge1ST:
Blue LED - Coax link connection.
Green LED - PoE ON.
Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base T/active.

eBridge1PCRM
Green LED: Power ON.

Functions
Auto detection and protection of legacy non-PoE cameras/devices.

Environmental
Operating Temperature:

eBridge1PCRM:
- 20° C to 49° C ( - 4° F to 120.2° F).

eBridge1ST:
For 15W: - 40° C to 75° C ( - 40° F to 167° F).
For 15W: - 40° C to 75° C ( - 40° F to 167° F).

Storage Temperature:
- 40° C to 75° C ( - 40° F to 167° F).
Humidity: 20 to 85%, non-condensing.

Operating Altitude
- 304.8 to 2,000m ( - 1000 to 6,561.679 ft.).
