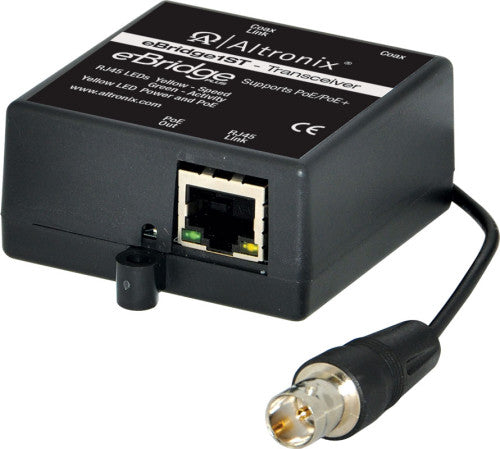

Altronix eBridge1ST EoC hardened transceiver transmits data at 25Mbps, Full Duplex over Coax cable to a paired eBridge receiver and provides power in a PoE/PoE+ compliant format to an enabled device/camera. The eBridge receiver is available in various options and is powered by an external midspan or endspan. The receiver passes PoE/PoE+ power over the same coax cable to the eBridge1ST transceiver, which, in turn, passes this power to an enabled IP camera/device. These plug and play units facilitate a cost-effective, simple way to replace legacy analog products with new IP devices over existing coax up to 500m.

Input
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) from eBridge receivers.

Compatible Receivers
eBridge1PCRM, eBridge4PCRM, eBridge8PCRM, eBridge16PCRM, eBridge1PCR, eBridge1PCRX, eBridge4PCRX, eBridge8PCRX, eBridge16PCRX.
eBridge8E
Visit www.altronix.com for the latest compatibility list.

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5.
Distance: up to 500m.
Speed: 10/100BaseT, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) Delivered to camera by eBridge1ST. Power provided by eBridge receiver to eBridge1ST by PoE protocol.*

Coax Link
Distance: Coax 500m for power delivery.
Throughput is rated to pass 25Mbps of data at distances up to 500m.
Connectivity: BNC, RG-59/U or similar.

LED Indicators
Green - PoE ON (by respective RJ45 jack).
Yellow and Green LED (RJ45) IP Link status, 10/100Base-T/active.
Blue: Coax Link is active.

Environmental
Operating Temperature:
For 15W: - 40° C to 75° C (-40° F to 167° F).
For 30W: - 40° C to 65° C (-40° F to 149° F).

Storage Temperature:
- 40° C to 75° C ( - 40° F to 167° F).
Humidity: 20 to 85%, non-condensing.

Operating Altitude
- 304.8 to 2,000m ( - 1000 to 6,561.679 ft.).

Functions
Auto detection and protection of legacy non-PoE cameras/devices.
