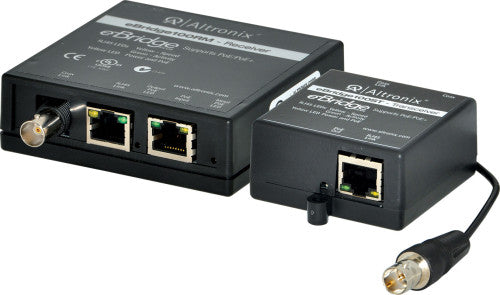

eBridge100STR is a versatile solution Ethernet adapter/media converter kit which transmits data at 100Mbps full duplex and power over Coax cable in a PoE+ compliant format. The eBridge100RM is powered via a PoE midspan, such as the Altronix Netway series, or by an endspan. The receiver passes the PoE(+) compliant power over cable to the eBridge100ST transceiver which in turn passes this power to an enabled IP Camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m. They provide a simple way to replace legacy analog products with new IP devices over existing coax.

Input eBridge100RM
Powered by midspan or endspan.
PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5.
Distance: up to 100m.
Speed: 10/100BaseT, half/full duplex, auto negotiation.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
Delivered to camera by eBridge100ST.
Power provided by eBridge100RM to eBridge100ST by PoE protocol.

Coax Link
Distance: Coax 300m for power delivery.
Throughput is rated to pass 100Mbps of data at distances up to 500m.
Connectivity: BNC, RG-59/U or similar.

LED Indicators
eBridge100RM:
Green LED: PoE ON.
Yellow LED: Power ON.

eBridge100RM and eBridge100ST:
Yellow and Green LED (RJ45): IP Link status, 10/100Base-T/active.

eBridge100ST:
Blue LED: Coax link connection.
Green LED: PoE ON.

Functions
Auto detection and protection of legacy non-PoE cameras/devices.

Operating Temperature
eBridge100RM:
- 20° C to 49° C ( - 4° F to 120.2° F).

eBridge100ST:
For 15W: - 40° C to 75° C ( - 40° F to 167° F).
For 30W: - 40° C to 60° C ( - 40° F to 140° F).

Storage Temperature
- 40° C to 75° C (-40° F to 167° F).
Humidity: 20 to 85%, non-condensing.

Operating Altitude
- 304.8 to 2,000m (-1000 to 6,561.679 ft.).
