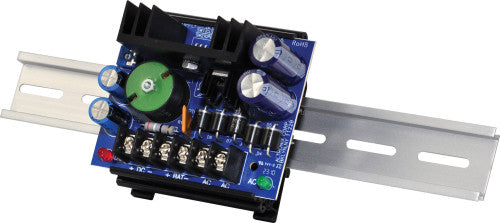

Altronix DPS5 6,9,12,24 VDC 4A DIN P/S CHGR
Altronix DPS5 power supply/charger converts a low voltage AC input into a 6VDC, 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.
Input
6VDC applications use TP1640.
12VDC applications use T2428100.
24VDC applications use T2428175.
Output
6VDC, 12VDC or 24VDC selectable output.
4.0A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Battery short circuit protection (circuit breaker).
Visual Indicators
AC input and DC output LED indicators.
Features
Extremely compact design.
Includes battery leads.
Snap Track compatible (order Altronix model number ST3).
Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
6VDC: 12 BTU/Hr.
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement:
6VDC: 55.2VA.
12VDC/24VDC: 115VA.
