Altronix COMMBATT1 POWER FOR ARCS/ERCES SYSTEMS

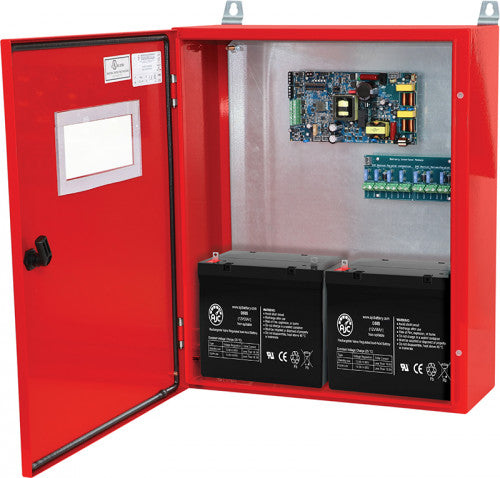

Altronix COMMBATT1 POWER FOR ARCS/ERCES SYSTEMS Altronix CommBatt1 is an in-building power and battery backup solution for emergency response radio coverage system. Designed and engineered to meet NFPA 1225 codes providing integrators and consultants with a BDA power and backup option. Input Voltage: 115VAC-220VAC 50/60Hz, 2A Input Fuse: 5A/250V Outputs Voltage: 12VDC or 24VDC Current UL2524 Specifications: 24V @ 5.5A total or 12V @ 9A total current UL864/ULC-S527 Specifications: 24V: 3.5A standby, 6A alarm 12V: 3.5A standby, 12A alarm Auxiliary: Power-limited @ 0.6A (unswitched) Other: Overvoltage protection. Filtered and regulated Battery Charging Type: Sealed lead acid or gel type; Two (2) 55AH batteries in series for 24V, One (1) or two (2) in parallel for 12V, 12AH option for UL864 Charge Current: 3A for 12V and 2A for 24V Fuse Rating: 20A/32V (Batteries are sold separately). Supervision (Form “C” Contacts) AC: Failure/Brownout Battery: Low Battery/Battery Presence/Battery fail Component Trouble: Critical Component Failure Charger Circuit Failure FACP Reporting Indicators Component Failure: Critical Component Failure Battery: Low or missing battery AC Input: AC Brownout or failure Charger: Charger trouble Heartbeat: Processor failure Critical Failure: Wrong voltage, shutdown indicator Physical and Environmental NEMA-4, UL Listed aluminum red powder coated wall mount enclosure with IP 65 battery vent and locking door, IP-68 cable entries Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF) Storage: – 20ºC to 70ºC (– 4ºF to 158ºF) Relative Humidity 85% +/– 5% BTU/Hr. (approx.) 74 BTU/Hr.
