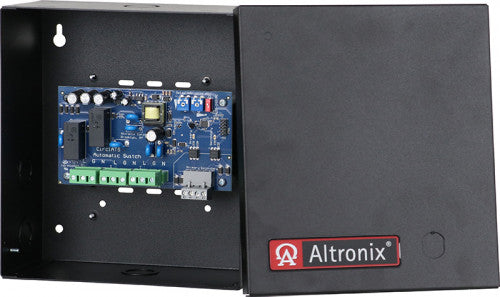

Altronix CIRC1ATSE AC TRANSFER SWITCH IN ENCL

Altronix CIRC1ATSE AC TRANSFER SWITCH IN ENCL

Altronix Circ1ATSE is a high voltage AC automatic transfer switch that can be added to any Altronix power supply with a high voltage input. This unit accepts connections from two (2) Independent High Voltage AC sources (Primary and Secondary) and provides a single redundant High Voltage AC Output. If AC Power is lost on the Primary input, the Circ1ATSE automatically transfers to the Secondary AC Power input without delay, ensuring that system security is maintained.

Input
Two (2) Independent AC Inputs: 120 or 240VAC (50/60 Hz), up to 10A each

Output
One (1) AC output: 120 or 240VAC up to 10A

Features
Removeable AC Terminal Blocks
Brownout Threshold Adjustment
Restore Delay Adjustment
DIN Rail mountable (DNP1)

Supervision
AC Failure (Primary and Secondary Inputs)
Form “A” Normally Closed contacts

LED Indicators
Input
LED Indicators of Primary and Secondary Power

Electrical
Temperature:
Operating: 0º C to 49º C (32º F to 120º F).
Storage: – 20º C to 70º C (– 4º F to 158º F).

Relative Humidity: 85% +/- 5%.
