Altronix ALTV615DC8UL 6-15VDC @ 4A, 8 FUSE OUT UL

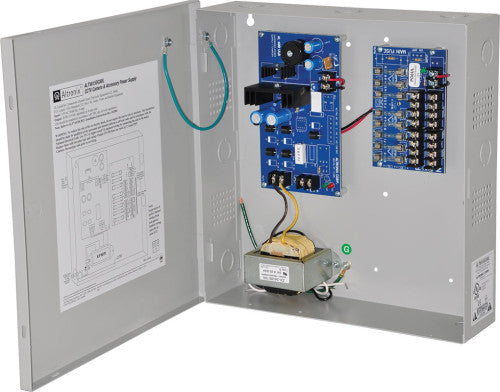

ALTV615DC8UL is designed with eight (8) individually Class 2 Rated fuse protected power limited outputs for powering CCTV Cameras and other video accessories.
Input
Input 115VAC, 50/60 Hz, 0.9A.
Output
Eight (8) Class 2 Rated fuse protected power limited outputs.
6VDC to 15VDC field adjustable.
4A total continuous supply current (0.50A per device, 3.5A max.).
Output fuses are rated @ 3.5A/250VAC.
Filtered and electronically regulated outputs.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr.: 12-31 BTU/Hr., depending on output.
System AC input VA requirement: 103.5VA.
Features
AC input and DC output LED indicators.
Power ON/OFF switch.
Spare fuse(s) provided.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
