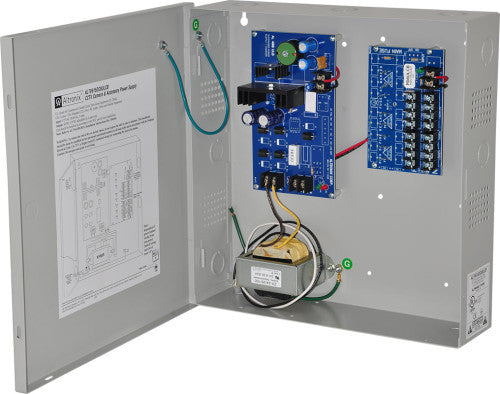

Altronix ALTV615DC8CB220 6-15VDC @ 4A 8 PTC 220vac
Altronix ALTV615DC8CB220 6-15VDC @ 4A 8 PTC 220vac is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix ALTV615DC8CB220 6-15VDC @ 4A 8 PTC 220vac
Highlight title
Text to highlight a key feature of your product
Description
Description
ALTV615DC8CB220 6-15VDC @ 4A 8 PTC 220vac
ALTV615DC8CB220 is designed with eight (8) individually PTC protected outputs for powering CCTV Cameras and other video accessories.
Input
Input 220VAC (working range 198VAC-256VAC), 50/60 Hz, 0.5A.
Output
Eight (8) PTC protected outputs (auto-resettable).
6VDC to 15VDC field adjustable.
4A total continuous supply current (0.50A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Filtered and electronically regulated outputs.
Features
AC input and DC output LED indicators.
Power ON/OFF switch.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
Temperature
Operating 0° C to 49° C (32° F to 120° F).
Storage - 20° C to 70ºC ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.): 12-31 BTU/Hr., depending on output.
System AC input VA requirement: 110VA.
