Altronix ALTV615DC1016 6-15VDC 10A 16 FUSE CCTV P/S
Altronix ALTV615DC1016 6-15VDC 10A 16 FUSE CCTV P/S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix ALTV615DC1016 6-15VDC 10A 16 FUSE CCTV P/S
Highlight title
Text to highlight a key feature of your product
Description
Description
Altronix ALTV615DC1016 6-15VDC 10A 16 FUSE CCTV P/S

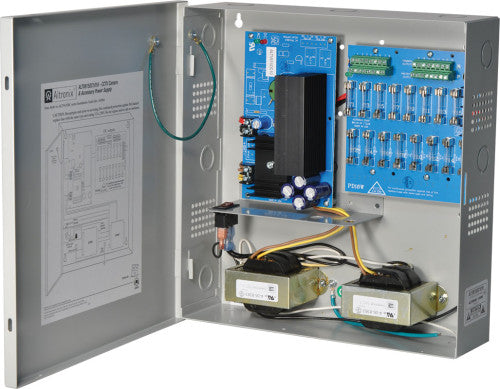

ALTV615DC1016 provides 6-15VDC distributed via sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
Input 115VAC, 50/60 Hz, 1.9A.
Output
Sixteen (16) fuse protected outputs.
6VDC to 15VDC field adjustable.
10A total continuous supply current (0.625A per device, 3.5A max.).
Output fuses are rated @ 3.5A/250VAC.
Filtered and electronically regulated outputs.
Temperature
Operating 0 to 49° C (32 to 120° F )
Storage - 20 to 70° C ( - 4 to 158° F)
Relative Humidity 85% +/- 5%
BTU/Hr. (approx.): 31-77 BTU/Hr.
System AC input VA requirement: 218.5VA.
Features
AC input and DC output LED indicators.
Illuminated power disconnect circuit breaker with manual reset.
Spare fuse(s) provided.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
