Altronix ALTV2416600ULCB 24AC25A/28AC20A,16PTC,UL,PS

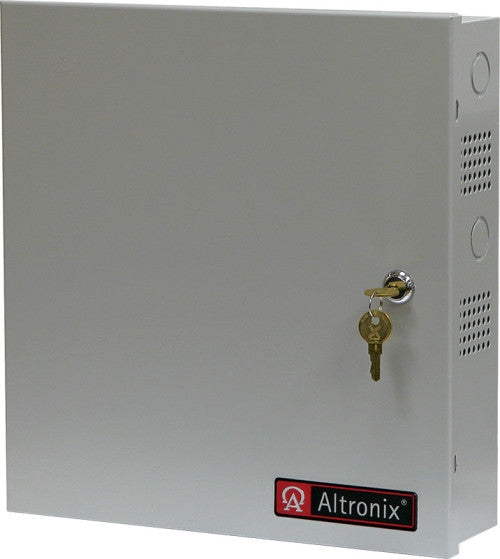

ALTV2416600ULCB provides 24VAC or 28VAC distributed via Sixteen (16) Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.
Input
115VAC, 50/60Hz, 5.4A.
Output
Sixteen (16) Class 2 Rated PTC protected power limited outputs (auto-resettable).
24VAC @ 25A (600VA) supply current (1.56A per device, 2.5A max.) or 28VAC @ 20A (560VA) supply current (1.25A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Surge suppression.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VAC: 308 BTU/Hr.
28VAC: 287 BTU/Hr.
System AC input VA requirement: 621VA.
Features
Secondary fuse rated @ 15A/32V.
AC power LED.
Power ON/OFF switch
