ALTV2416220 16 FUSE OUT 24/28VA @ 8/7A 220

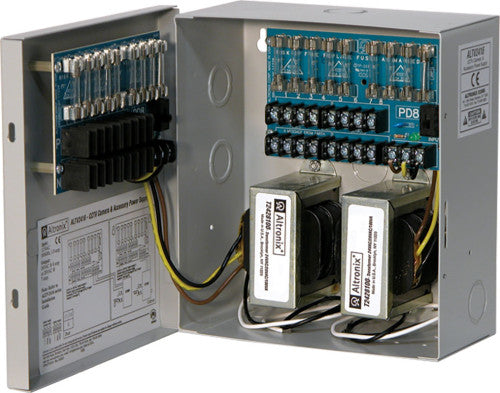

ALTV2416220 AC Wall Mount CCTV Power Supply provides 24VAC distributed via sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
220VAC, 50/60Hz, 0.5A.
Output
Sixteen (16) fuse protected outputs.
24VAC @ 8A (200VA) or 28VAC @ 7A (200VA) supply current.
Outputs are rated @ 2.5A.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
24VDC: 98 BTU/Hr.
28VDC: 100 BTU/Hr.
System AC input VA requirement: 110VA.
Features
Secondary fuse rated @ 5A/250V.
AC power LED.
Power ON/OFF switch.
Unit maintains camera synchronization.
