Altronix ALTV1224DC220 12/24VDC,4A/ 8 OUT CCTV P/S 22

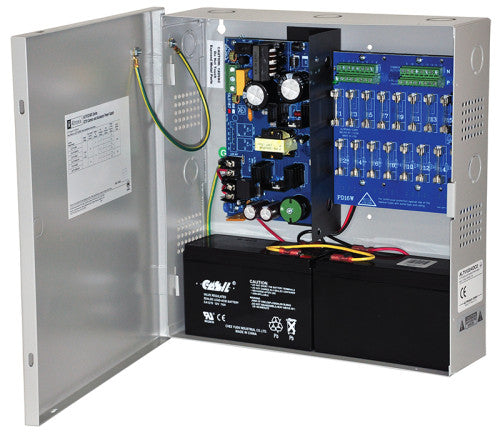

ALTV1224DC220 12/24VDC,4A/ 8 OUT CCTV P/S 22 ALTV1224DC220 is designed to power CCTV Cameras and accessories. It provides 12VDC or 24VDC distributed via eight (8) fuse protected outputs with a total of 4A total supply current. Input Input 220VAC (working range 198VAC-256VAC), 50/60 Hz, 0.9A. Output Eight (8) fuse protected outputs. 12VDC or 24VDC field adjustable. 4A total continuous supply current (0.5A per device, 3.5A max.). Outputs are rated @ 3.5A. Filtered and electronically regulated outputs. Battery Charging Capacity: 12VDC /7AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VDC: 49 BTU/Hr. System AC input VA requirement: 176VA. Features AC input and DC output LED indicators. Power ON/OFF switch. Ease of installation saves time and eliminates costly labor.
