Altronix ALTV1224DC1CB 12/24 VDC 4A 16 FUSE CCTV P/S
Altronix ALTV1224DC1CB 12/24 VDC 4A 16 FUSE CCTV P/S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix ALTV1224DC1CB 12/24 VDC 4A 16 FUSE CCTV P/S
Highlight title
Text to highlight a key feature of your product
Description
Description

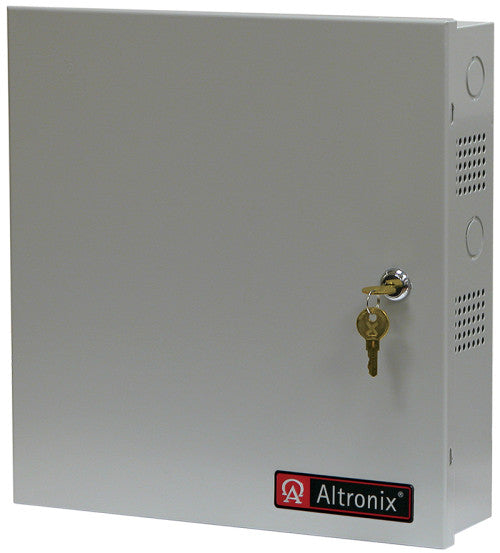

Altronix ALTV1224DC1CB 12/24 VDC 4A 16 FUSE CCTV P/S
Product Details
ALTV1224DC1CB is designed to power CCTV Cameras and accessories. It will provide 12VDC or 24VDC distributed via sixteen (16) PTC protected outputs with a total of 4A total supply current. Input Input 115VAC, 50/60 Hz, 1.45A. Output Sixteen (16) PTC protected outputs (auto-resettable). 12VDC or 24VDC. 4A total continuous supply current (0.25A per device, 3.5A max.). Outputs are rated @ 3.5A. Filtered and electronically regulated outputs. Battery Charging Capacity: 12VDC/7AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VDC: 49 BTU/Hr. System AC input VA requirement: 166.75VA. Features AC input and DC output LED indicators. Power ON/OFF switch. Unit maintains camera synchronization. Ease of installation saves time and eliminates costly labor.
