Altronix | SKU:
ALTV1224DC1

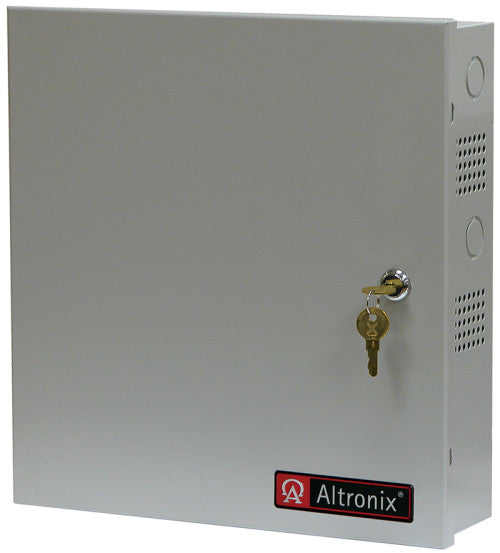

Altronix ALTV1224DC1 12/24 VDC 4A 16 FUSE CCTV P/S
Regular price
$193.32
Unit price
/
Unavailable
Altronix ALTV1224DC1 12/24 VDC 4A 16 FUSE CCTV P/S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix ALTV1224DC1 12/24 VDC 4A 16 FUSE CCTV P/S
Regular price
$193.32
Unit price
/
Unavailable
Highlight title
Text to highlight a key feature of your product
Description
Description
Altronix ALTV1224DC1 12/24 VDC 4A 16 FUSE CCTV P/S
ALTV1224DC1 provides 12VDC or 24VDC distributed via sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.
Input
Input 115VAC, 50/60 Hz, 1.45A.
Output
Sixteen (16) fuse protected outputs.
12VDC or 24VDC.
4A total continuous supply current (0.25A per device, 3.5A max.).
Outputs are rated @ 3.5A.
Filtered and electronically regulated outputs.
Battery Charging
Capacity: 12VDC/7AH (2 within enclosure); 40 AH / 65 AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement: 166.75VA.
Features
AC input and DC output LED indicators.
Power ON/OFF switch.
Unit maintains camera synchronization.
Ease of installation saves time and eliminates costly labor.
