Altronix ALTV1224C4 12VDC 2.5A/24VAC 4A 4 FUSE P/S
Product Details

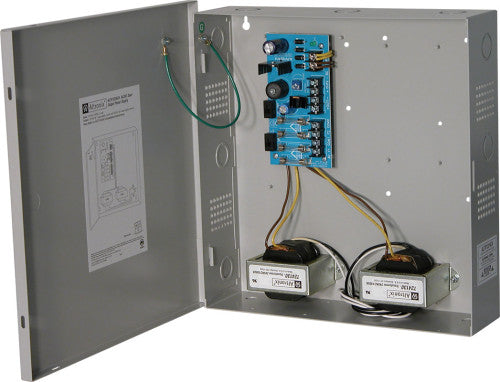

ALTV1224C4 AC/DC Dual Output Power Supply is designed to provide both 12VDC and 24VAC outputs where a combination of both AC and DC outputs are required.
Specifications
Input
115VAC 50/60 Hz, 1.52A.
Output
Four (4) individually fused outputs.
Two (2) fuse protected outputs @ 12VDC.
Two (2) fuse protected outputs @ 24VAC.
6A total output current.
2A supply current @ 12VDC.
4A supply current @ 24VAC.
DC output fuses are rated @ 1A.
AC output fuses are rated @ 3.5A.
Filtered and electronically regulated outputs (DC outputs).
Surge suppression (AC outputs).
Features
AC/DC power LED indicators.
Power ON/OFF switch.
Unit maintains camera synchronization.
Ease of installation saves time & eliminates costly labor.
Temperature
Operating 0ºC to 49ºC (32ºF to 120ºF).
Storage - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 72 BTU/Hr.
System AC input VA requirement: 174.8VA.
