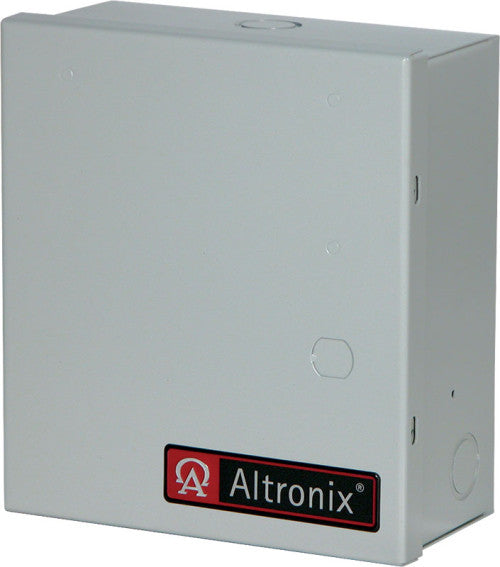

Altronix AL624TE220 AL624 IN BC100NC+T1656220 INS

AL624TE220 AL624 IN BC100NC+T1656220 INS AL624TE220 linear power supply/charger converts 220VAC input into 12VDC @ 1.2A of continuous supply current (see specifications). This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power. Input 220VAC, 50/60 Hz 0.25A. Output 12VDC output. 12VDC @ 1.2A supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.3A. PTC battery protection. (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 7 BTU/Hr. System AC input VA requirement: 55VA. Features Power supply/charger with enclosure and T1656220 transformer (16.5VAC/56VA).
