Altronix AL624ET AL624 +BC100+TP1620
Product Details

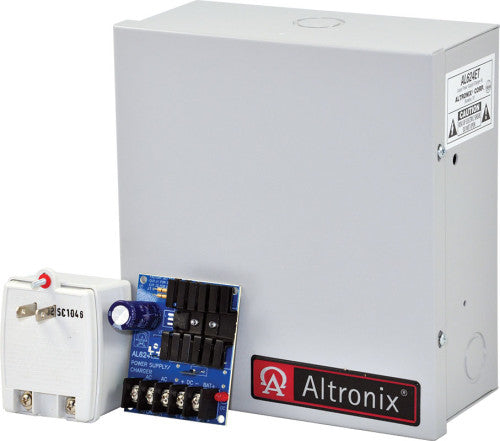

Altronix AL624ET linear power supply/charger kit converts a 115VAC 60Hz input into 12VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power. Input 115VAC, 60 Hz 1.2A. Output 12VDC output. 12VDC @ 1.2A supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 300mA. PTC battery protection. (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Features Power supply/charger with enclosure and TP1620 plug-in transformer (16.5VAC/20VA). Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries. Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 7 BTU/Hr. System AC input VA requirement: 138VA.
