Altronix AL624E AL624 +BC100
Product Details

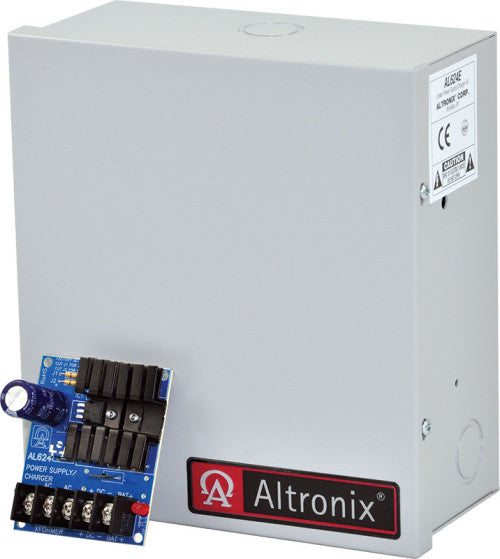

Altronix AL624E linear power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power. Input 16VAC to 24VAC, 20VA to 40VA. Output Switch selectable 6VDC-12VDC-24VDC. 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 300mA. PTC battery protection. (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Features Power supply/charger with enclosure. Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries. Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 6VDC: 4 BTU/Hr. 12VDC: 7 BTU/Hr. 24VDC: 9 BTU/Hr. System AC input VA requirement: 16.5VAC/20VA: 138. 16.5VAC/40VA: 276. 24VAC/20VA: 92. 24VAC/40VA: 192.05.
