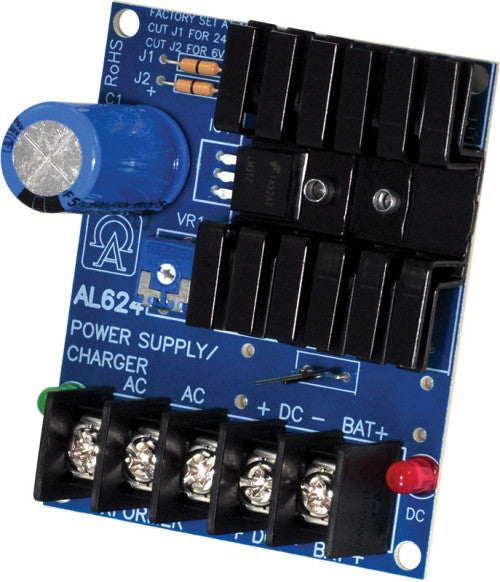

Altronix AL624 6/12/24 VDC POWER SUPPLY/CHGR
Product Details
Altronix AL624 linear power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security, and CCTV system accessories that require additional power. Input 16VAC to 24VAC, 20VA to 40VA. Output Switch selectable 6VDC-12VDC-24VDC. 6VDC or 12VDC @ 1.2A supply current or 24VDC @ 0.75A supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.3A. PTC battery protection. (Batteries are sold separately). Visual Indicators AC input and DC output LED indicators. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr.: 6VDC: 4 BTU/Hr. 12VDC: 7 BTU/Hr. 24VDC: 9 BTU/Hr. System AC input VA requirement: 16.5VAC/20VA: 138. 16.5VAC/40VA: 276. 24VAC/20VA: 92. 24VAC/40VA: 192.05.
