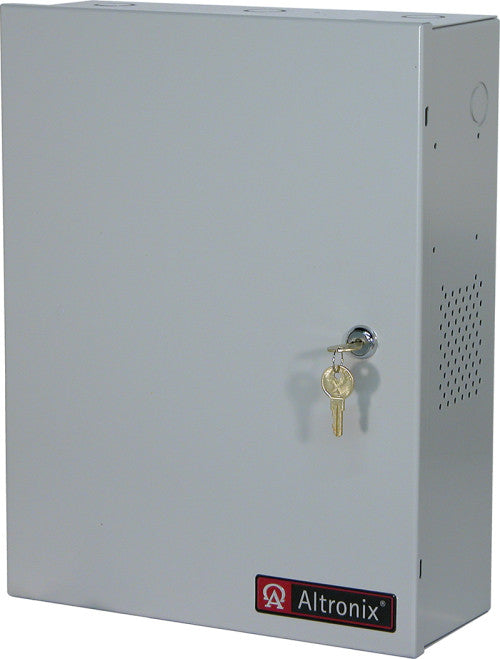

Altronix AL600ULXX UL PWRSPPY 12/24V,6A XL CABNT
Highlight title
Text to highlight a key feature of your product
Description
Description
Altronix AL600ULXX UL PWRSPPY 12/24V,6A XL CABNT
Product Details
AL600ULXX is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC non power-limited output. Input Input 115VAC, 60Hz, 3.5A. Output 12VDC or 24VDC selectable output. 6A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.7A. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70°C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 37 BTU/Hr. 24VDC: 74 BTU/Hr. System AC input VA requirement: 402.5VA.
