Altronix AL600ULXD 6A 12/24 VDC UL SPLY 115/230
Product Details

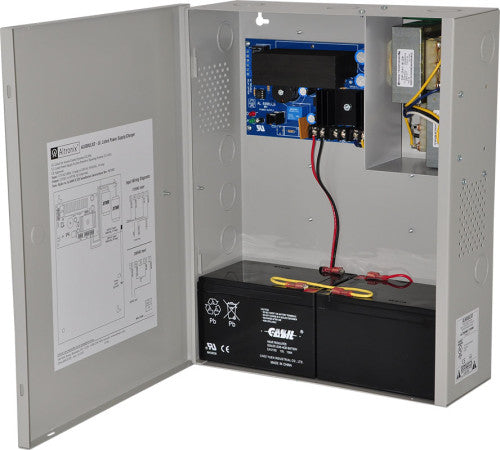

Altronix AL600ULXD power supply/charger converts a 115VAC 60Hz or 230VAC 50/60Hz input into a single 12VDC or 24VDC non power-limited output. Input Input 115VAC / 60Hz, 3.5A or 230VAC 50/60Hz, 1.8A. Output 12VDC or 24VDC selectable output. 6A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.7A. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0 to 49° C (32 to 120° F ) Storage: -20 to 70° C ( -4 to 158° F) Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 12VDC: 37 BTU/Hr. 24VAC: 74 BTU/Hr. System AC input VA requirement: 115VAC: 402.5VA. 230VAC: 414VA.
