Altronix AL600PD8CB220 12/24VDC @ 6A 8 PTC 220V BC300

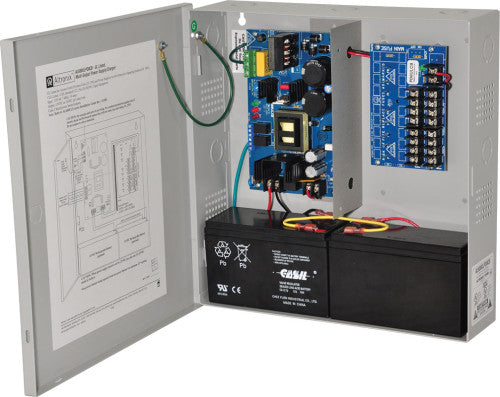

AL600PD8CB220 12/24VDC @ 6A 8 PTC 220V BC300 AL600PD8CB220 is a multi-output power supply/charger that converts a nominal 220VAC, 50/60Hz input into eight (8) 12VDC or 24VDC outputs. Input Nominal 220VAC (range 198VAC-256VAC), 50/60Hz, 1.5A. Output 12VDC or 24VDC selectable output. 6A continuous supply current. Eight (8) PTC protected outputs (auto-resettable). Outputs are rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.7A. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input, DC output and BAT trouble. Temperature Operating: 0 to 49° C (32 to 120° F ). Storage: - 20 to 70° C ( - 4 to 158° F). Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 12VDC or 12VAC: 37 BTU/Hr. 24VDC or 24VAC: 74 BTU/Hr. System AC input VA requirement: 330VA.
