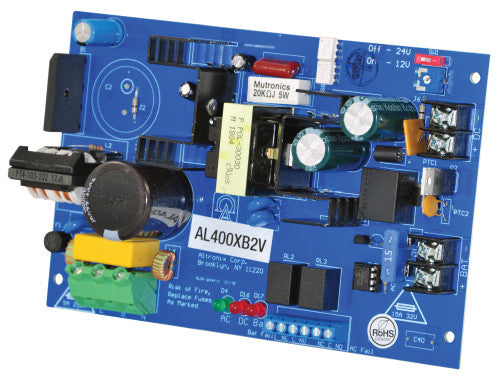

Altronix AL400XB2V 12VDC @ 4A, 24VDC @ 3A BD 220V

AL400XB2V 12VDC @ 4A, 24VDC @ 3A BD 220V AL400XB2V is a power supply/charger that converts a nominal 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single 12VDC or 24VDC output. Input Nominal 220VAC (range 198VAC - 256VAC), 50/60Hz, 1.5A. Input fuse rated @ 5A/250V. Output 12VDC or 24VDC selectable output. 12VDC @ 4A or 24VDC @ 3A supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input, DC output, and Battery LED indicators. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VDC: 37 BTU/Hr. System AC input VA requirement: 330VA.
