Altronix AL400ULXJG AL400UL UL XL ENCL GREY
Product Details

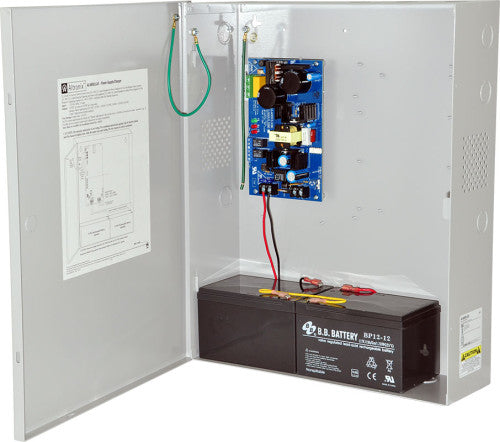

AL400ULXJG is a power supply/charger which converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output. Input Input 115VAC, 60Hz, 3.5A. Input fuse rated @ 3.5A/250V. Output 12VDC or 24VDC selectable output. 12VDC @ 4A or 24VDC @ 3A supply current. Class 2 Rated power-limited output. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.7A. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Electrical Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: -20ºC to 70ºC (-4ºF to 158ºF). Relative Humidity: 85% +/-5%. BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VDC: 37 BTU/Hr. System AC input VA requirement: 402.5VA.
