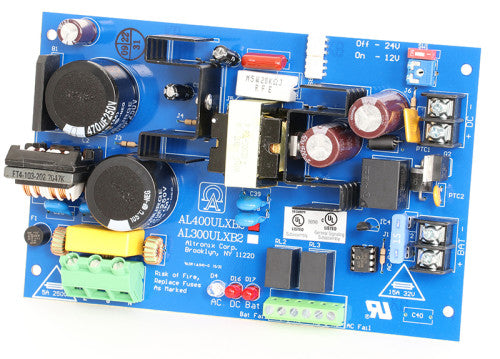

Altronix AL400ULXB2 12VDC @ 4A, 24VDC @ 3A BOARD

Altronix AL400ULXB2 12VDC @ 4A, 24VDC @ 3A BOARD

Product Details

Altronix AL400ULXB2 UL Listed Sub-Assembly power supply/charger converts a 115VAC, 60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision. Input Input 115VAC, 60Hz, 3A. Input fuse rated @ 3.5A/250V. Output 12VDC or 24VDC selectable output. 12VDC @ 4A or 24VDC @ 3A supply current. Class 2 Rated power limited output. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input, DC output and Battery LED indicators. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VDC: 37 BTU/Hr. System AC input VA requirement: 402.5VA.
