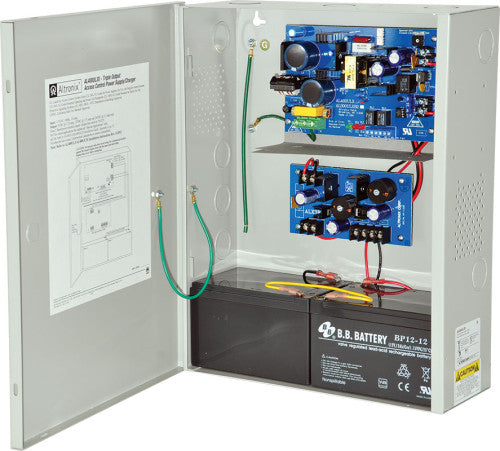

Altronix AL400UL3X UL TRI OUT 5, 12 & 24 VDC SPLY

Altronix AL400UL3X UL TRI OUT 5, 12 & 24 VDC SPLY

Product Details

Altronix AL400UL3X triple output power supply/charger is designed for use with access control systems and accessories. It converts a 115VAC / 60Hz input into three (3) individually PTC protected 5VDC, 12VDC, and 24VDC regulated outputs. Input Input 115VAC, 60Hz, 1.45A. Output 5VDC, 12VDC, 24VDC simultaneous outputs. 5VDC @ 1.75A continuous supply current. 12VDC @ 1.75A continuous supply current. 24VDC @ 1.5A continuous supply current. Class 2 Rated PTC protected power-limited auto-resettable outputs. Outputs are rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.7A. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 25 BTU/Hr. System AC input VA requirement: 166.75VA.
