Altronix AL400UL UL LISTED 12-24V 4A PS/CHGR
Product Details

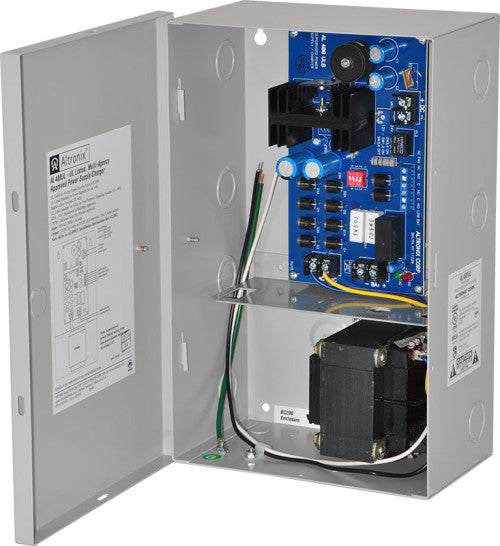

AL400UL is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output. Input Input 115VAC, 60Hz, 3.5A. Output 12VDC or 24VDC selectable output. 12VDC @ 4A or 24VDC @ 3A supply current. Class 2 Rated power limited output. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 1.2A. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0 to 49° C (32 to 120° F ) Storage: - 20 to 70° C ( - 4 to 158° F) Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VAC: 37 BTU/Hr. System AC input VA requirement: 166.75VA.
