Altronix AL400PD4220 AL400 W/PD4 INSTALL 220VAC

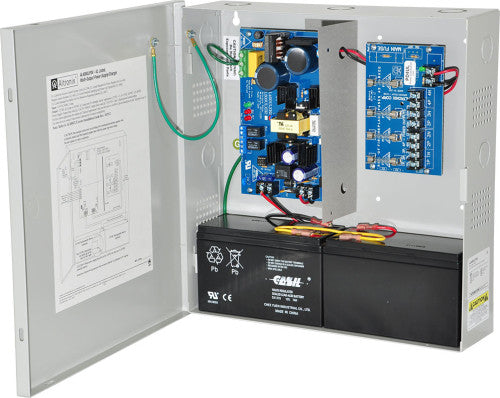

AL400PD4220 AL400 W/PD4 INSTALL 220VAC AL400PD4220 is a multi-output power supply/charger that converts a nominal 220VAC 50/60Hz input into four (4) 12VDC or 24VDC outputs. Input Nominal 220VAC (range 198VAC - 256VAC), 50/60Hz, 1.5A. Input fuse rated @ 3.5A/250V. Output 12VDC or 24VDC selectable output. 12VDC @ 4A or 24VDC @ 3A supply current. Four (4) fuse protected outputs. Outputs are rated @ 3.5A. Filtered and electronically regulated outputs. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.7A. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70°C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 25 BTU/Hr. 24VDC: 37 BTU/Hr. System AC input VA requirement: 330VA.
