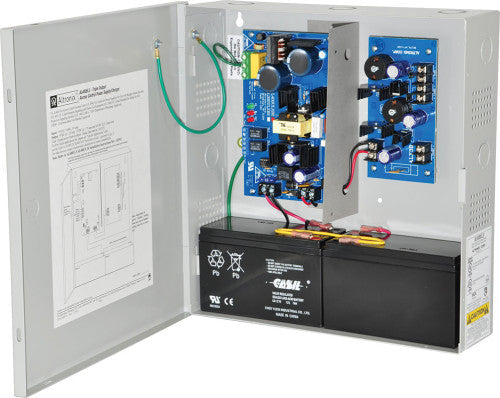

Altronix AL4003V TRI OUT 5, 12 & 24 VDC P/S 220

AL4003V TRI OUT 5, 12 & 24 VDC P/S 220 Altronix AL4003V triple output power supply/charger is designed for use with access control systems and accessories. It converts a 220VAC 50/60Hz input into three (3) individually PTC protected 5VDC, 12VDC, and 24VDC regulated outputs. Input Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 0.8A. Output 5VDC, 12VDC, 24VDC simultaneous outputs. 5VDC @ 1.75A continuous supply current. 12VDC @ 1.75A continuous supply current. 24VDC @ 1.5A continuous supply current. Outputs are rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.7A. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70°C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 34 BTU/Hr. System AC input VA requirement: 176VA.
