Altronix AL300ULXR 12/24 VDC UL LSTD P/S RED CABT
Product Details

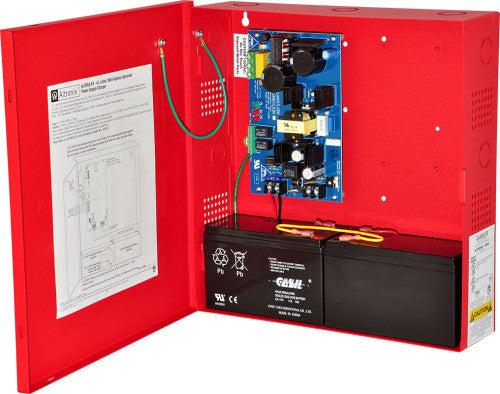

AL300ULXR is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output.
Specifications
Input
Input 115VAC, 60Hz, 3.5A.
Input fuse rated @ 3.5A/250V.
Output
12VDC or 24VDC selectable output.
Burglar Alarm Applications (UL 603):
12VDC = 10VDC-13.2VDC.
24VDC = 20VDC-26.4VDC.
2.5A total supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery supervision (form "C" contacts).
Battery presence supervision (form "C" contacts).
Visual Indicators
AC input, DC output and Battery LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70°C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr (approx.):
12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr.
System AC input VA requirement: 402.5VA.
