Altronix AL300ULXPD16 12/24VDC 2.5A 16 OUT UL P/S

Altronix AL300ULXPD16 12/24VDC 2.5A 16 OUT UL P/S

Product Details

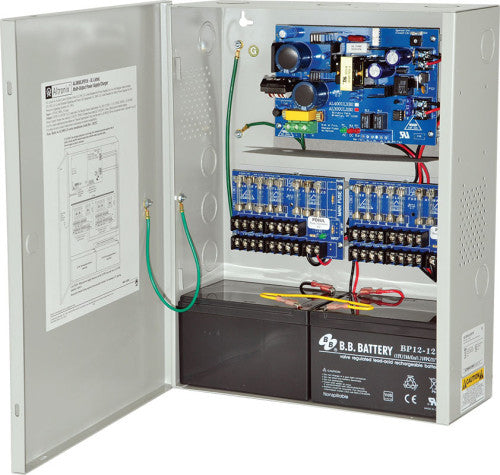

AL300ULXPD16 is a multi-output power supply/charger that converts a 115VAC/60Hz input into sixteen (16) Class 2 Rated 12VDC or 24VDC power limited outputs. Input Input 115VAC, 60Hz, 3.5A. Input fuse rated @ 3.5A/250V. Output 12VDC or 24VDC selectable output. Burglar Alarm Applications (UL 603): 12VDC = 10VDC-13.2VDC. 24VDC = 20VDC-26.4VDC. 12VDC or 24VDC @ 2.5A supply current. Sixteen (16) Class 2 Rated fuse protected power limited outputs. Outputs are rated @ 3.5A. Filtered and electronically regulated outputs. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.7A. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input, DC output and Battery LED indicators. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70°C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 15 BTU/Hr. 24VDC: 31 BTU/Hr. System AC input VA requirement: 402.5VA.
