Altronix AL300ULXD 12/24VDC 2.5AMP P/S 115/230 IN
Altronix AL300ULXD 12/24VDC 2.5AMP P/S 115/230 IN is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Altronix AL300ULXD 12/24VDC 2.5AMP P/S 115/230 IN
Highlight title
Text to highlight a key feature of your product
Description
Description
Altronix AL300ULXD 12/24VDC 2.5AMP P/S 115/230 IN
Product Details

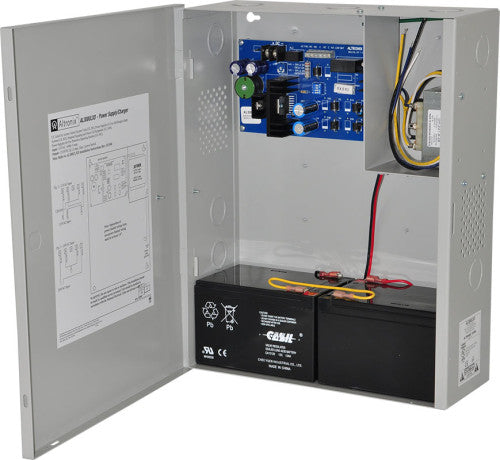

Altronix AL300ULXD power supply/charger converts a 115VAC 50/60Hz or 230VAC 50/60Hz input into a single 12VDC or 24VDC Class 2 Rated power-limited output. Input 115VAC 50/60Hz, 0.9A or 230VAC 50/60Hz 0.45A input. Output 12VDC or 24VDC selectable output. 12VDC or 24VDC @ 2.5A supply current. Class 2 Rated power limited output. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.6A. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0 to 49° C (32 to 120° F ) Storage: - 20 to 70° C ( - 4 to 158° F) Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 12VDC: 15 BTU/Hr. 24VAC: 30 BTU/Hr. System AC input VA requirement: 103.5VA.
