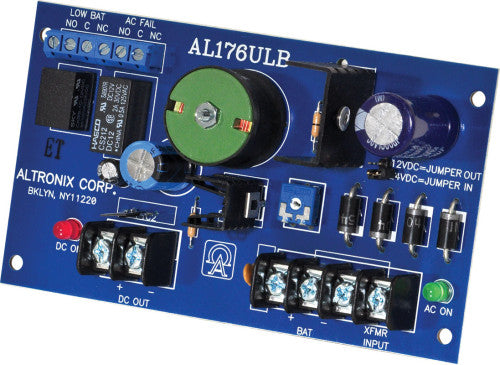

Altronix AL176ULB 12/24VDC 1.75A UL PS/CG SPV Bd
Product Details
Altronix AL176ULB is a Single Output Power Supply/Charger that converts a low voltage AC input into a PTC protected 12VDC or 24VDC auto-resettable output. Input Voltage: 28VAC, 56VA from UL Listed, Class 2 transformer. Output Voltage: 12VDC or 24VDC selectable outputs. Current: 1.75A continuous max. Class 2 Rated power limited output. PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Other: Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. Maximum charge current: 0.4A. (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Low Battery: Form “C” contacts. Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 11 BTU/Hr. 24VDC: 22 BTU/Hr. System AC input VA requirement: 57.5VA.
