Altronix AL175UL 12/24VDC 1.75A UL PWR SPLY/CGR
Product Details

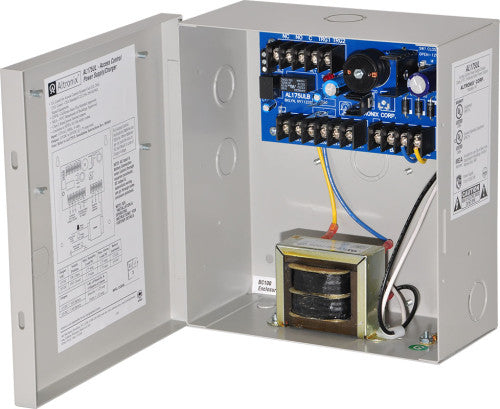

Altronix AL175UL Switching Power Supply/Charger converts a 115VAC 60Hz input into two (2) individually PTC protected 12VDC or 24VDC outputs. Input Input 115VAC, 60Hz, 0.6A. Access control trigger input. Output 12VDC or 24VDC selectable outputs. 1.75A supply current. Two (2) Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Maximum charge current: 400mA. Automatic switch over to stand-by battery when AC fails. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 11 BTU/Hr. 24VDC: 22 BTU/Hr. System AC input VA requirement: 69VA.
