Altronix AL168300CB 16 VAC@18A/18VAC@16A 8 Out
Product Details

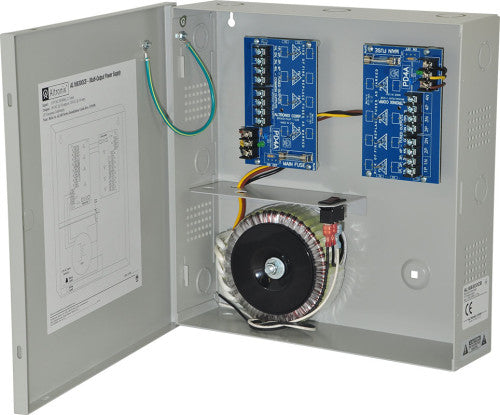

AL168300CB Multi-Output Power Supply provides 16VAC or 18VAC distributed via eight (8) PTC protected outputs for powering multiple security system or access control panels.
Specifications
Input
Input 115VAC, 50/60Hz, 2.7A.
Output
Eight (8) auto-resettable PTC protected outputs.
16VAC or 18VAC output.
16VAC @ 18A (300VA) supply current (2.25A per device, 2.5A max.) or 18VAC @ 16A (300VA) supply current (2A per device, 2.5A max.).
Outputs are rated @ 2.5A.
Main fuse rated @ 15A/32V.
Surge suppression.
Visual Indicators
AC power LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 147 BTU/Hr.
System AC input VA requirement: 310.5VA.
Features
Illuminated master power disconnect circuit breaker with manual reset.
