Altronix AL125ULP 12/24VDC 1A UL P/S W/TP2440
Product Details

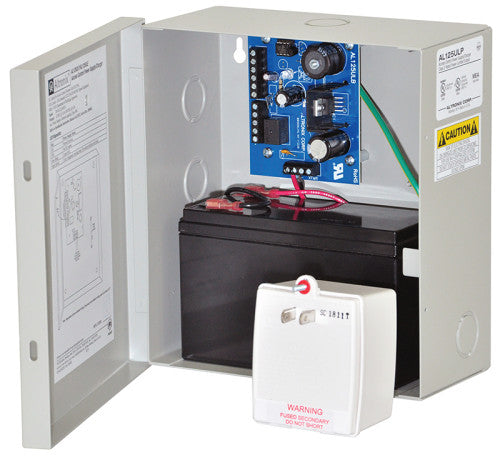

AL125ULP is a Two (2) Output Switching Power Supply/Charger that converts a 24VAC @ 40VA input, into two (2) individually PTC protected 12VDC or 24VDC outputs. Input 24VAC, 40VA from UL Listed, Class 2 transformer. Access control trigger input. Output 12VDC @ 1A or 24VDC @ 0.5A selectable outputs. Two (2) Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current: 400mA. Automatic switch over to stand-by battery when AC fails. (Batteries are sold separately). Supervision Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching). Indicator (LED) Unit Status: Normal / No Output / Loss of AC / Triggered. Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70ºC ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 6 BTU/Hr. 24VDC: 6 or 12 BTU/Hr. System AC input VA requirement: 55.2VA. Features Includes power supply, plug-in transformer, enclosure and battery leads.
