Altronix AL125ULB 12/24VDC 1A P/S BOARD W/FACP
Product Details

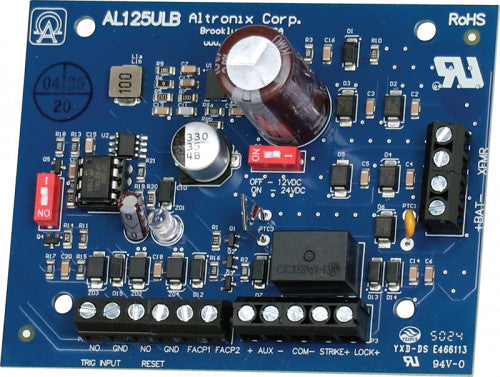

Altronix AL125ULB two (2) output switching Power Supply/Charger converts a low voltage AC input into two (2) individually PTC protected 12VDC or 24VDC outputs. Input 24VAC, 40VA from UL Listed, Class 2 transformer. Access control trigger input. Output 12VDC or 24VDC selectable outputs. 1A supply current. Two (2) Class 2 Rated power limited outputs. Fail-Safe/Fail-Secure lock output (switched). Auxiliary power output (unswitched). PTC protected outputs, rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current: 400mA. Automatic switch over to stand-by battery when AC fails. (Batteries are sold separately). Supervision Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching). Indicator (LED) Unit Status: Normal / No Output / Loss of AC / Triggered. Temperature Operating Temperature: 0° C to 49° C (32° F to 120° F). Storage Temperature: - 20° C to 70° C ( -4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 6 or 12 BTU/Hr. System AC input VA requirement: 55.2VA
