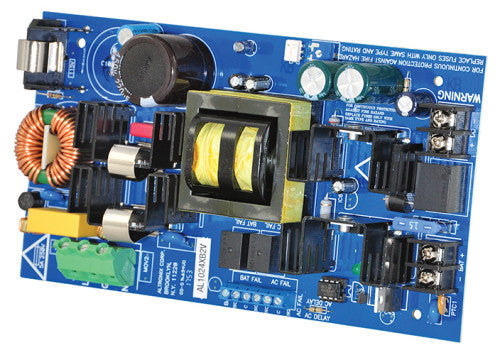

Altronix AL1024XB2V 10A ACCESS 8A FIRE BOARD 220V

AL1024XB2V 10A ACCESS 8A FIRE BOARD 220V Altronix AL1024XB2V power supply/charger converts a 220VAC, 50/60Hz input into a single 24VDC output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision. Input Nominal 220VAC (working range 198VAC-256VAC), 50/60Hz, 2.5A. Input fuse rated @ 3.5A/250V. Output 24VDC output. 10A of continuous supply current for Access Control applications. 8A of continuous supply current for Fire Alarm applications. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Type: Sealed lead acid or gel type Fuse Rating: 15A/32V Failover: Upon AC loss, instantaneous (Batteries are sold separately). Supervision AC Failure: Form “C” contacts Battery: Form “C” contacts Indicators (LED) Input: 220VAC is present DC Output: Powered Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 123 BTU/Hr.
