Altronix AL1012XPD4CB220 10A@12VDC, 4PTC OUT P/S, 220V

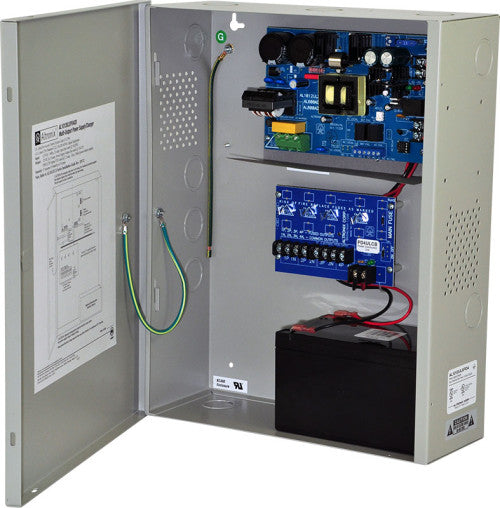

AL1012XPD4CB220 10A@12VDC, 4PTC OUT P/S, 220V AL1012XPD4CB220 is a multi-output power supply/charger that converts a nominal 220VAC, 50/60Hz input into four (4) 12VDC outputs. Input Nominal 220VAC (range 198VAC-256VAC) 50/60Hz, 1.3A. Input fuse rated @ 5A/250V. Output 12VDC output. 10A continuous supply current. Four (4) PTC protected outputs (auto-resettable). Outputs are rated @ 2.5A. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current: 0.7A. Automatic switch over to stand-by battery when AC fails. Zero voltage drop when switched over to battery backup. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Notification trigger is selectable for 30 seconds (factory set) or 6 hours. Low battery supervision (form "C" contacts). Battery presence supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Temperature Operating: 0 to 49° C (32 to 120° F ). Storage: - 20 to 70° C ( - 4 to 158° F). Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 61 BTU/Hr. System AC input VA requirement: 286VA.
